Factory direct deal automatic wet laminating machine waterbased glue cold paper laminating machine for BOPP

FOB Reference Price:Get Latest Price
$19,000.00 - $25,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
8KW
Model Number:
SZFM-1200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Laminating Machine
Applicable Industries:
Printing Shops, Advertising Company
Condition:
New
Application:
Apparel, Beverage, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Case, Film
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V/50HZ, 380V/50HZ
Place of Origin:
Zhejiang, China
Brand Name:
AOTE
Dimension(L*W*H):
4900*1900*2400 mm
Weight:
2000 kg
Certification:
CE ISO9001, CE ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Online support
Product name:
paper laminating machine
Keyword:
paper laminating machine
Brand:
AOTE
weight:
2000 kg
Size:
4900*1900*2400 mm
Material:
Plastic
power:
8KW
Model:
SZFM-1200
Supply Ability
Supply Ability:
10 Set/Sets per Month paper laminating machine
Packaging & Delivery
Packaging Details
film and wooden case
Port
Ningbo/Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

Factory direct deal wet laminating machine automatic waterbased glue cold paper laminating machine for BOPP





Introduction:

SZFM-1200 Automatic Waterbased Cold Laminating Machine is designed for cold waterbased glue lamination, speed up to 100m/min, features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, easy to operate.

Configuration&Functions:

1.    Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.

2.    High Accuracy Lap Control: Servo-controlled lap within ±2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.

3.    Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.

4.    Immerging Coating System: Adopts immerging coating method, can save glue consumption and easy to control coating amount.

5.    Heating Lamps: Equipped with heating lamps, ensure that the machine can work in cold weather.

6.    Perforation Knife: Equipped with high accuracy perforation knife, cooperate with our pneumatic differential pull and separating device to cut sheets perfectly.

7.    Rewind to Roll:After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.

8.    Anti-curvature Delivery Platform: Especially designed for thin paper, avoid paper curvature.



Product Description

Main technical parameter




Model

SZFM-1200

Max.Paper Size

1000X1150mm

Min.Paper Size

285X350mm

Paper Thickness

100-500gsm

Film Thickness

8~25 micron

Max. Speed

100m/min

Voltge

380V 50Hz

Total Power

8KW

Working Power

3~5KW

Lap Accuracy

±2mm

Coating Glue Amount

3~8g/m^2

Hight of Feeder Pile

1000mm

Dimension (L*W*H)

4900×2000×2100 mm

Wood Box Dimension (L*W*H)

1.1820×2050×2200 mm(FEEDER)

2.2000×2050×1900 mm(LAMINATING PART)

Total Weight

2000 kg

Main Parts





 PLC and touch screen

 Chinese Taiwan Weinview

 Transducer

 China Kewo

 Programming controller

 Chinese Taiwan Delta

 Servomotor

 Chinese Taiwan Delta

 Ac contactor

 Frence schneider

 relay

 Frence schneider

 Push button

 Frence schneider

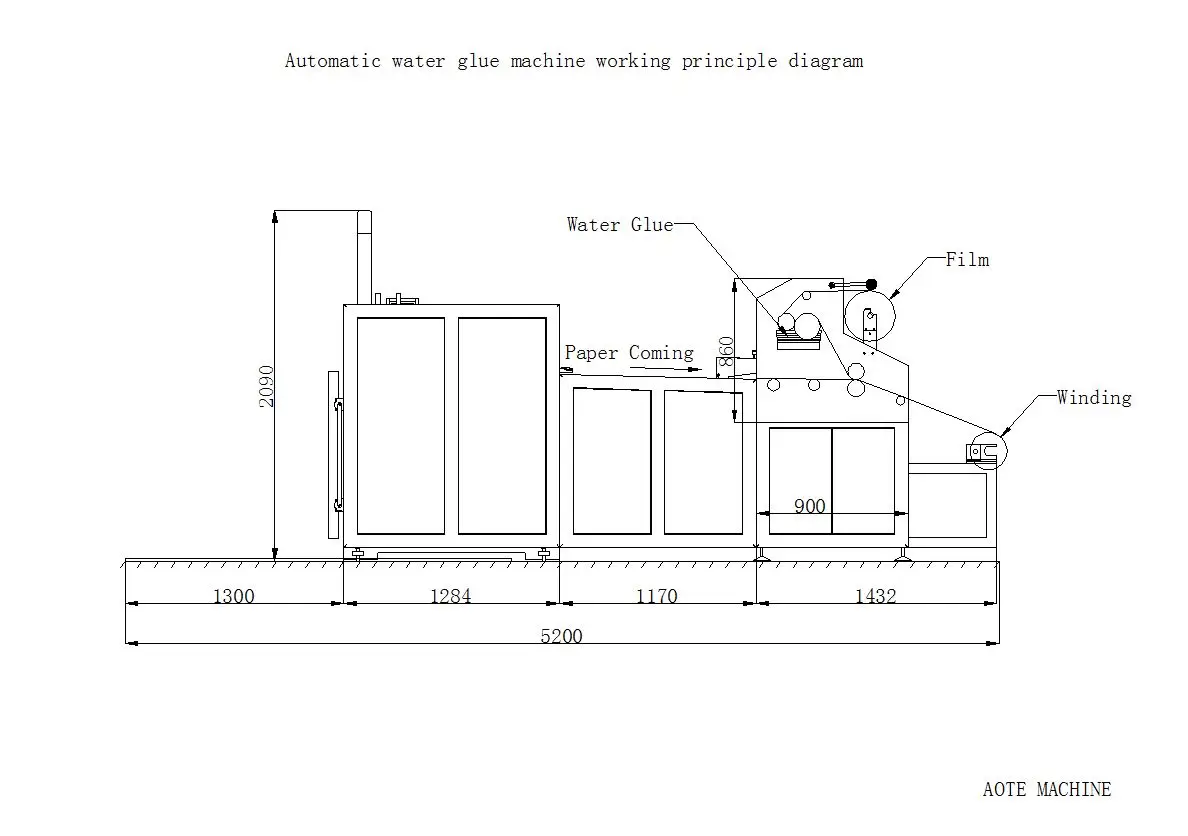

Automatic water-based Laminating machine picture Show



1.    Feeder Part

Adopt high speed offset feeder and chain drive non-stop pre-stacking system, can feed sheets up to 100 m/min, smoothly without stop, obviously increase the efficience.

2.    Delivery Platform

Equipped with high accuracy front lay and pneumatic side lay regulator, accurate position, anti-curvature device can deliver sheets in high speed without curvature.

3.    Lamination Main Part

Adopts Immerging coating system with rubber coating roller, can coat glue even and save much glue.

Rubber and high accuracy mirror laminating rollers ensure high laminating performance.

Equipped with High accuracy Perforation Knife, assist for cutting process.

4.    Heating Lamps

Equipped with heating lamps to ensure glue can work in cold weather.

5.    Rewinding Part

After lamination, the sheets are rewound to roll to dry the glue and prepare for cutting.

Related Products
Company Information

Ruian AoTe packaging machinery co., LTD is located in Ruian economic development zone XiaoZhai dedicated road no. 1, close to Wenzhou BinHai avenue road Wenzhou airport 25 kilometers, 10 kilometers away from Ryan moving station, convenient transportation network and excellent geographical location for my company to provide a good external environment.
Our company has more than 20 years of post-press equipment manufacturing experience, is a collection of scientific research, design, manufacturing, service as one of the professional company. Our strong technical force, high-quality "AoLi" brand products and perfect after-sales service, won the trust of customers at home and abroad. Company has been rated as "trustworthy product" government agencies, "heavy contract, keep promise", "good faith enterprise", "AAA grade credit enterprise", and through ISO9001:2008 quality management system and CE safety certification.

More about us

Our Services

After sale services and component replacement.

During the period of quality guarantee, we supply the spare parts in free for replacement, in case of quality problem.



Quality Assurance.

Seller provides a 12-month guarantee period. After the guarantee, seller shall still provide technical support to buyer.



Training, Installation and Test Run.

Seller can arrange operation training in Seller’s factory; or that if Buyer requires seller to send technicians to Buyer’s factory for installation and training, Buyer shall pay visa applying cost, round air ticket, accommodation and daily salary $100/person upon final confirmation.



*This quotation is valid for 60 days.

**All the above prices and conditions are subject to our final confirmation.

Packaging & Shipping

Packaging.

Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.



Delivery Date.

Within 30 days after payment of deposit.



Terms of Transportation.

Seller shall deliver equipment at its factory and may arrange transportation for Buyer but freight shall be for Buyer’s account.



Terms of Payment.

30% deposit by T/T upon final confirmation; balance by T/T before shipment; or 100%L/C at sight.



*This quotation is valid for 60 days.

**All the above prices and conditions are subject to our final confirmation.
