Printing shop automatic heat laminating machine paper BOPP film lamination machine

  • >=1 Sets
    $50,000.00
Power:
25~45kw
Model Number:
QLFM-1100
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Laminating Machine
Packaging Material:
plastic, wood
Packaging Type:
Film, case
Driven Type:
Electric
Applicable Industries:
Printing Shops, Advertising Company, Packaging workshop
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Turkey, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, UAE, Bangladesh, Ukraine, Uzbekistan
Showroom Location:
Turkey, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Mexico, Russia, Thailand, Morocco, UAE, Sri Lanka, Bangladesh, South Africa, Ukraine, Malaysia
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:
New
Application:
Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles
Automatic Grade:
Automatic
Voltage:
380v 50/60hz
Place of Origin:
Zhejiang, China
Brand Name:
Aoli/Aote
Dimension(L*W*H):
9600x2600x2700mm
Weight:
9500kg
Certification:
CE
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
1 Year
Key Selling Points:
Easy to Operate
Function:
Laminating film on paper sheets
Laminating type:
Waterbased and thermal lamination
Laminating Material:
PET/BOPP/PVC/Metalized film
Speed:
0-80m/min
Feeding way:
High speed automatic feeder
Heating Way:
Electromagnetic heating
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
film wrap and wooden box packaging
Port
Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

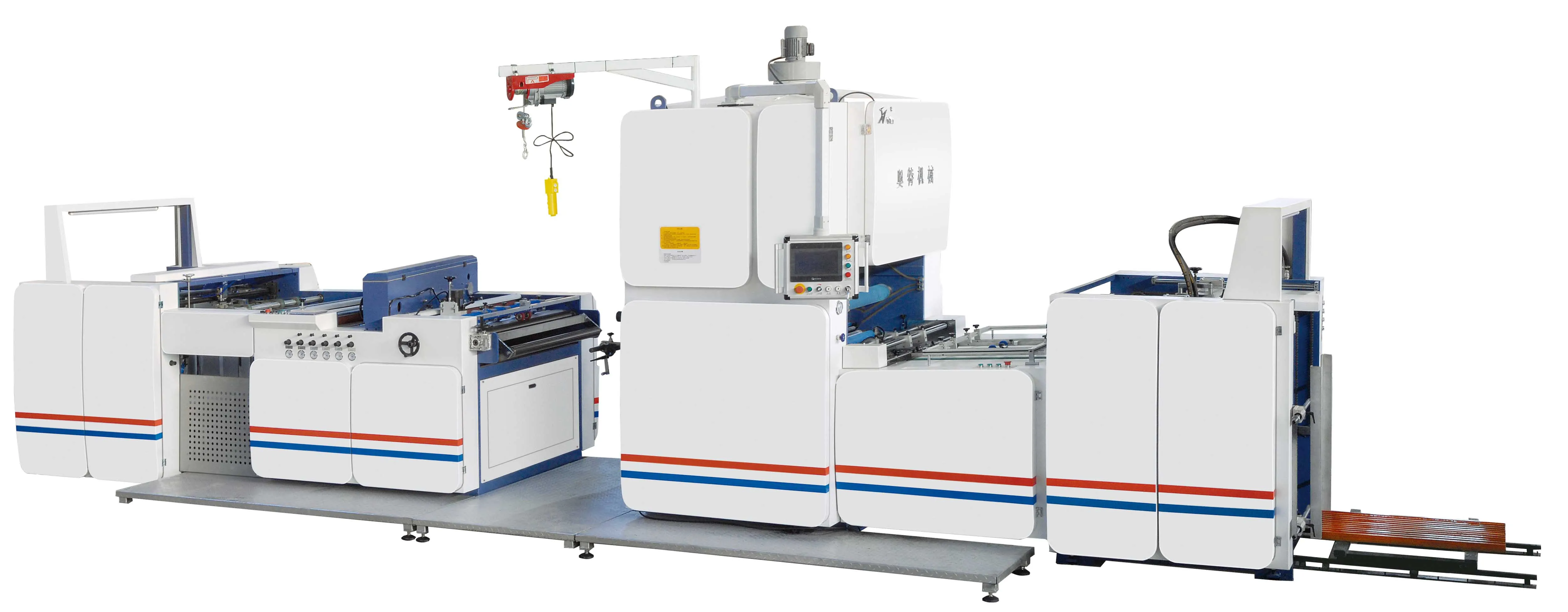

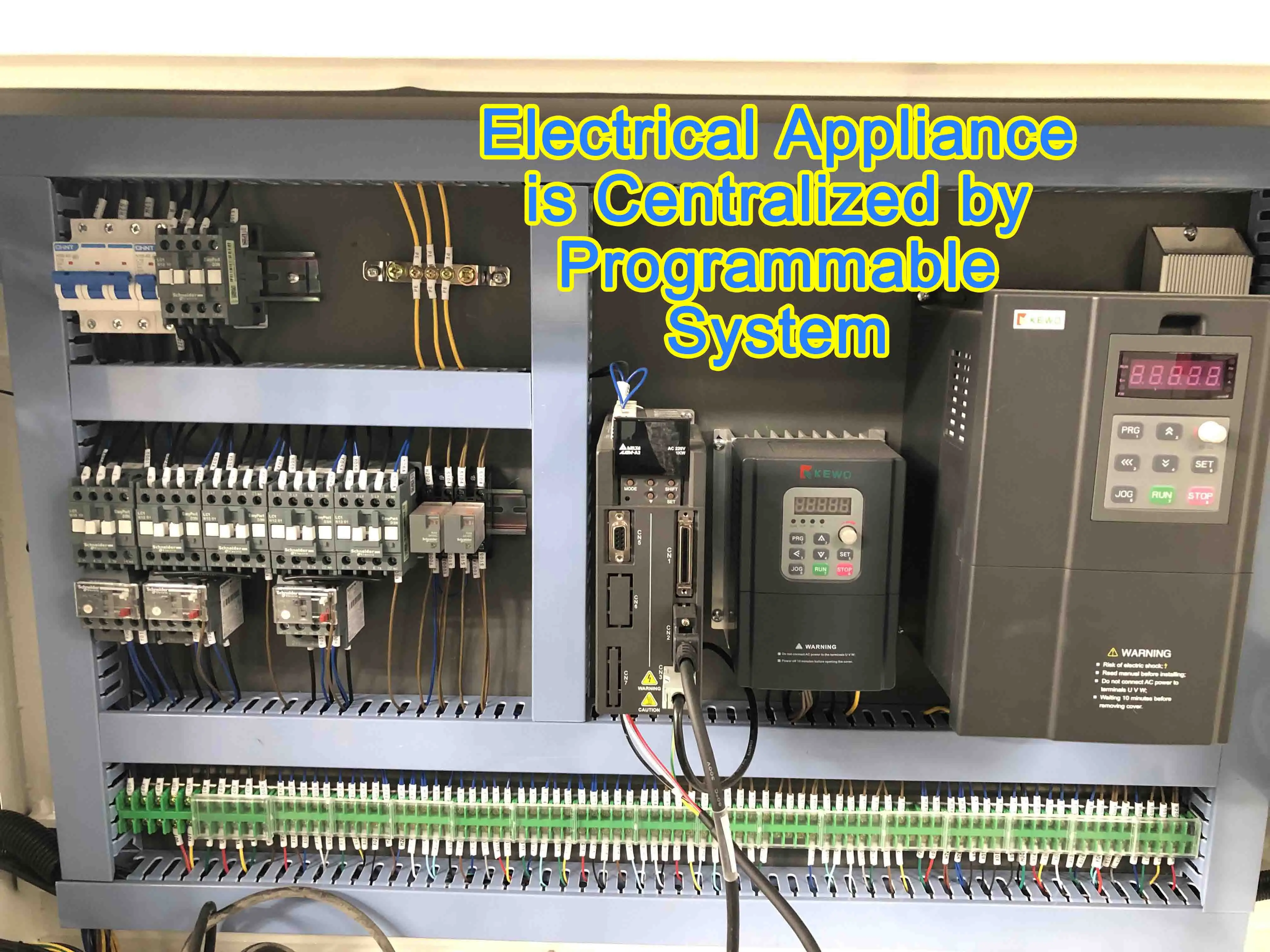

QLFM-1100 fully automatic vertical lamination machine is designed for waterbased glue and thermal lamination multi-functions.Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate.
Lamination Usage

Paper box

Gift box, shoe box, food box, medicine box, express box...

Paper bag

Gift bag, shopping bag, food bag, eco-friendly bag...

Packaging paper

Gift packaging paper, book cover packaging paper...

Book

Poster, magazine, picture, calendar, catalog, leaflet...

Card

Business card, greeting card, post card, advertisement card...

Label

Clothes label, drink label, food label, sticker...
Product Paramenters
Model
QLFM-1100
Max. Paper Size
1000x1050mm
Min. Paper Size
285x350mm
Recommended Paper Thickness
100~500gsm
Recommended Film Thickness
8~25micron
Max. Laminating Speed
80m/min
Voltage
380V 50HZ
Total Power
65kw
Working Power
25~45kw
Lap Accuracy
±2mm
Regular Pressure
5~15Mpa
Height of Feeder Pile
1000mm
Height of Stacker Pile
1000mm
Dimension(L*W*H)
9600x2600x2700mm
Packaging Size(L*W*H)
(Wooden Pallet)
(40GP Container)
1850x2100x2200(Feeder Unit)
2360x2200x2550(Lamination Unit)
2200x2100x1850(Cutting Unit)
2200x2040x2200(Stacker Unit)
Total Weight
9500kg
Details

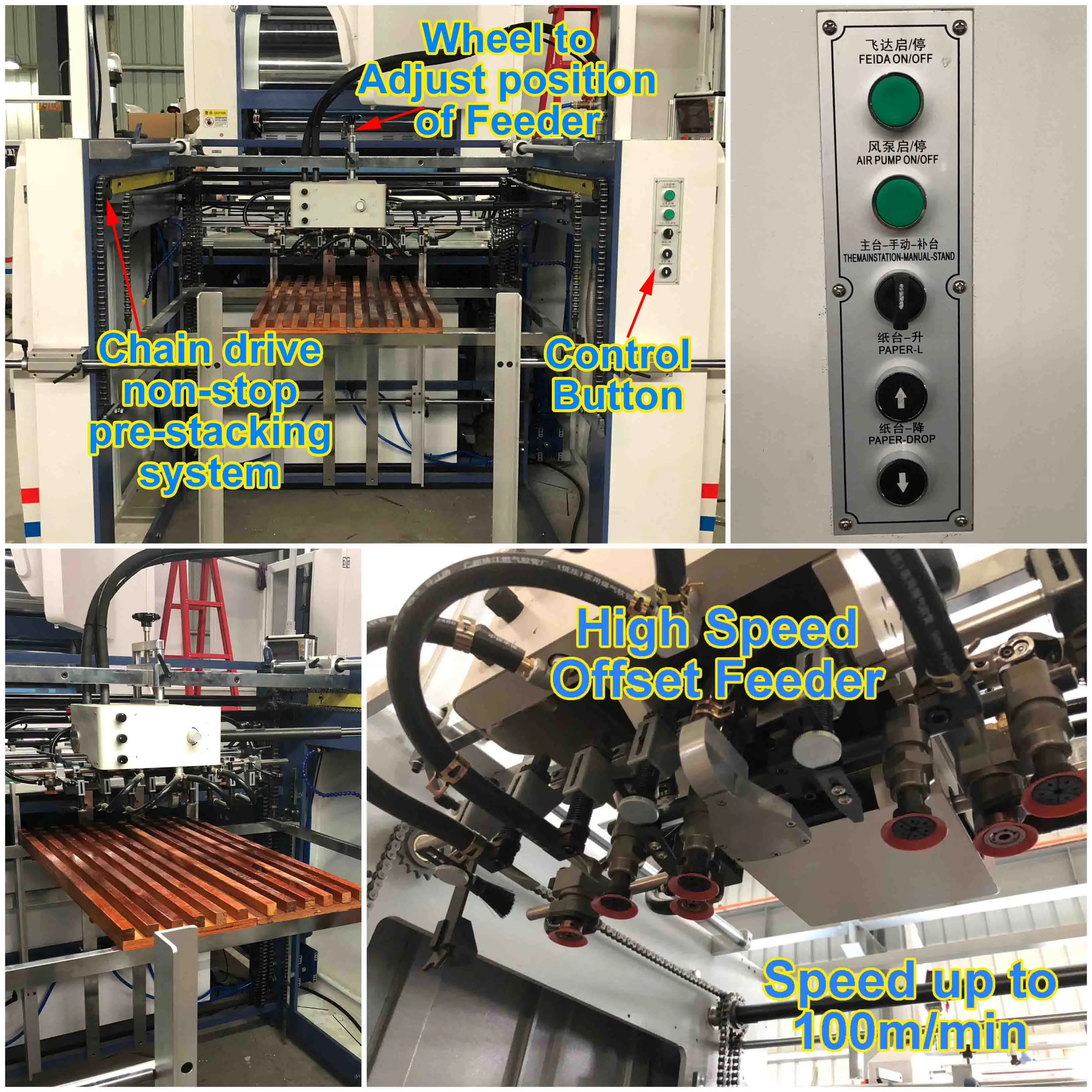

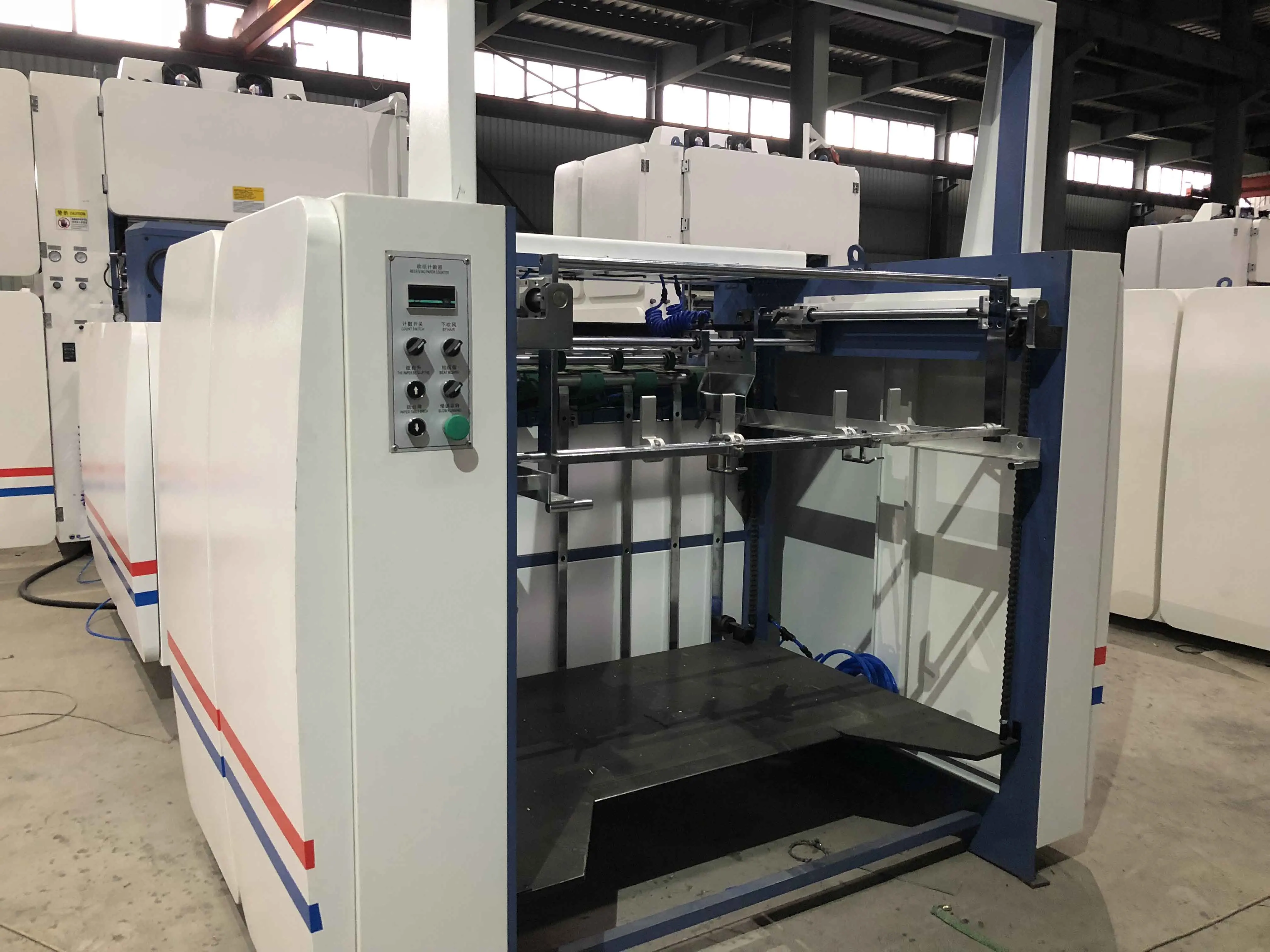

1. Feeder Part

Adopt high speed offset feeder and chain drive non-stop pre-stacking system, can feed sheets up to 100 m/min,
smoothly without stop, obviously increase the efficience.

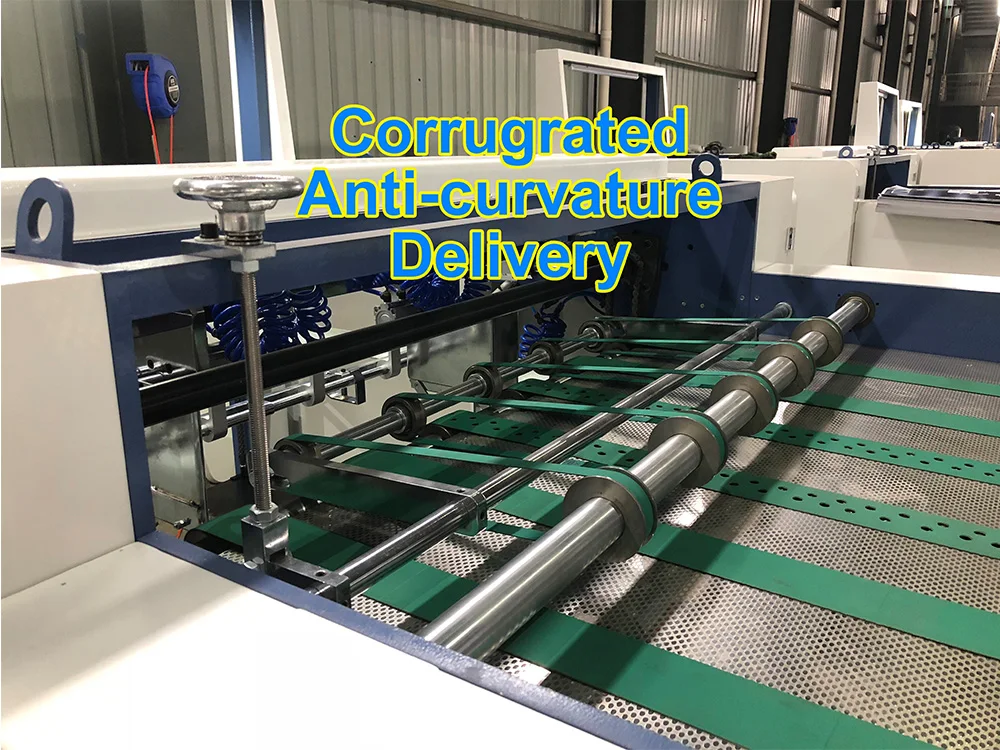

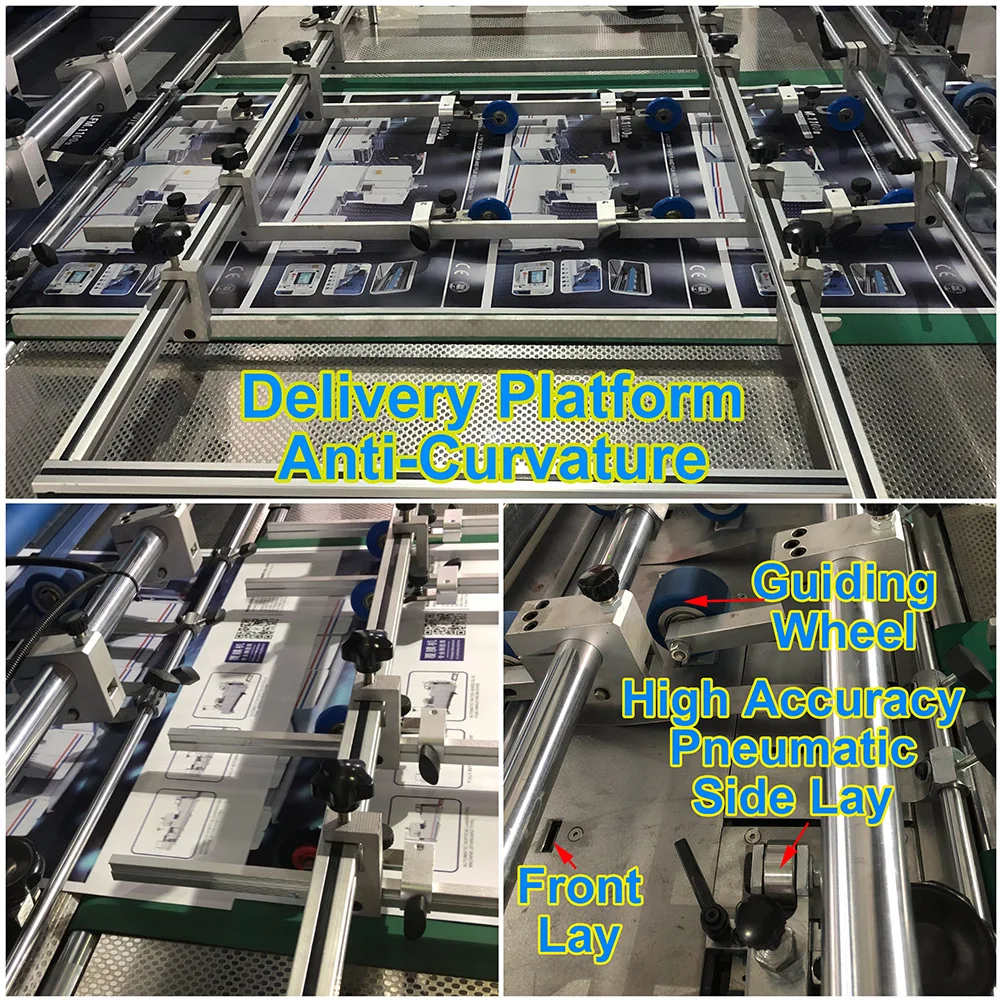

2. Delivery Platform
Equipped with high accuracy front lay and pneumatic side lay regulator, accurate position, can deliver sheets in high speed without curvature.

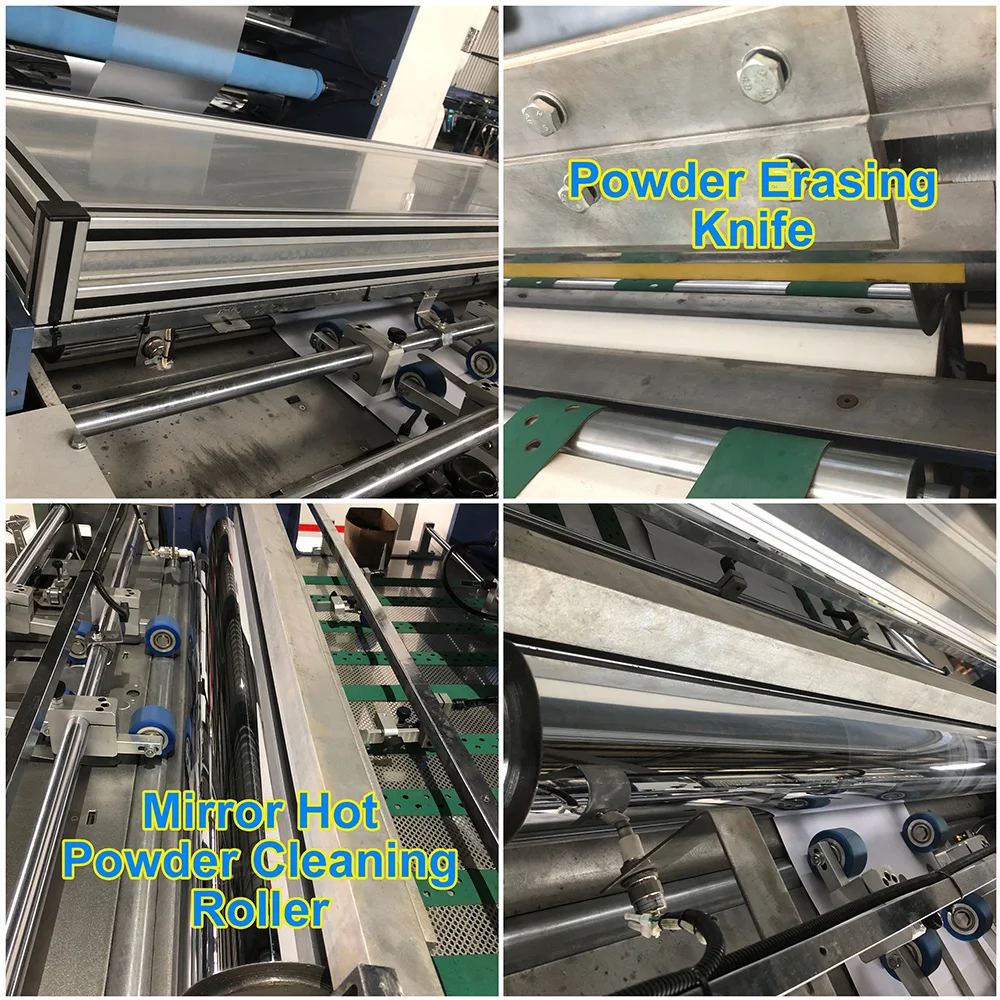

3. Hot Powder Cleaning (Optional)
Cleaning printing powder, especially for dark color paper, improve the laminating performance.
4. Lamination Main Part

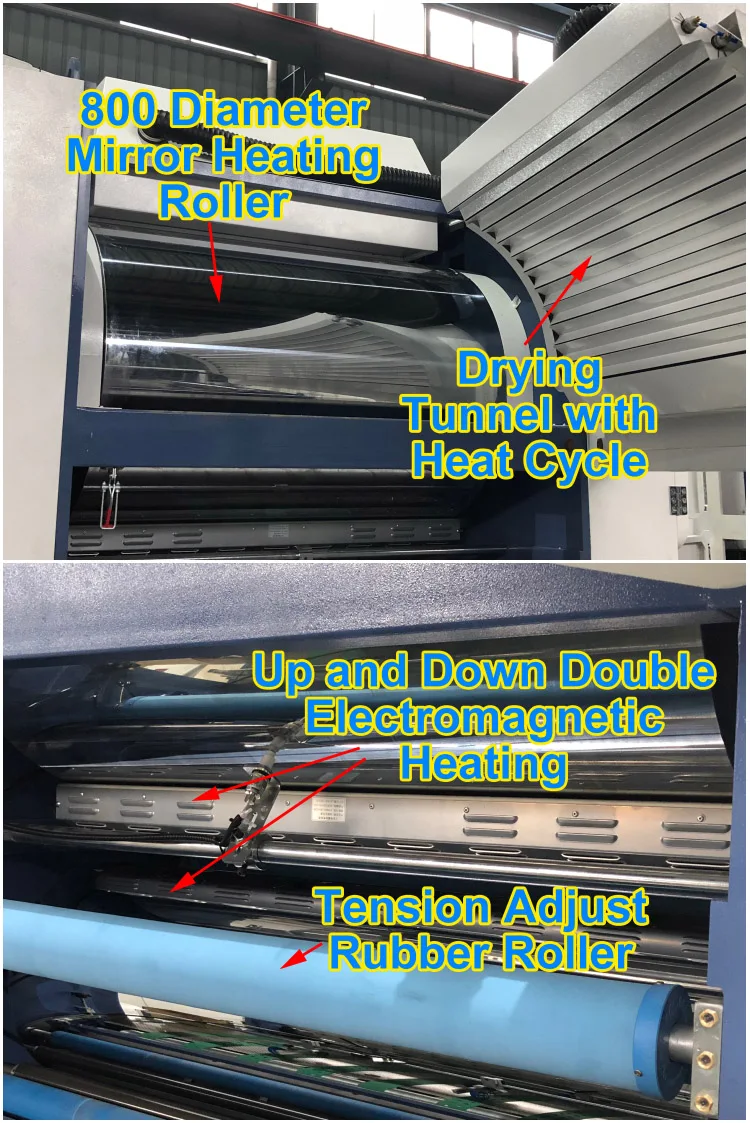

Adopt 800mm diameter big mirror heating roller, equipped with electromagnetic heating system, high heating speed and performance,at the same time the heat cycle system and hot air cycle system can save much energy.

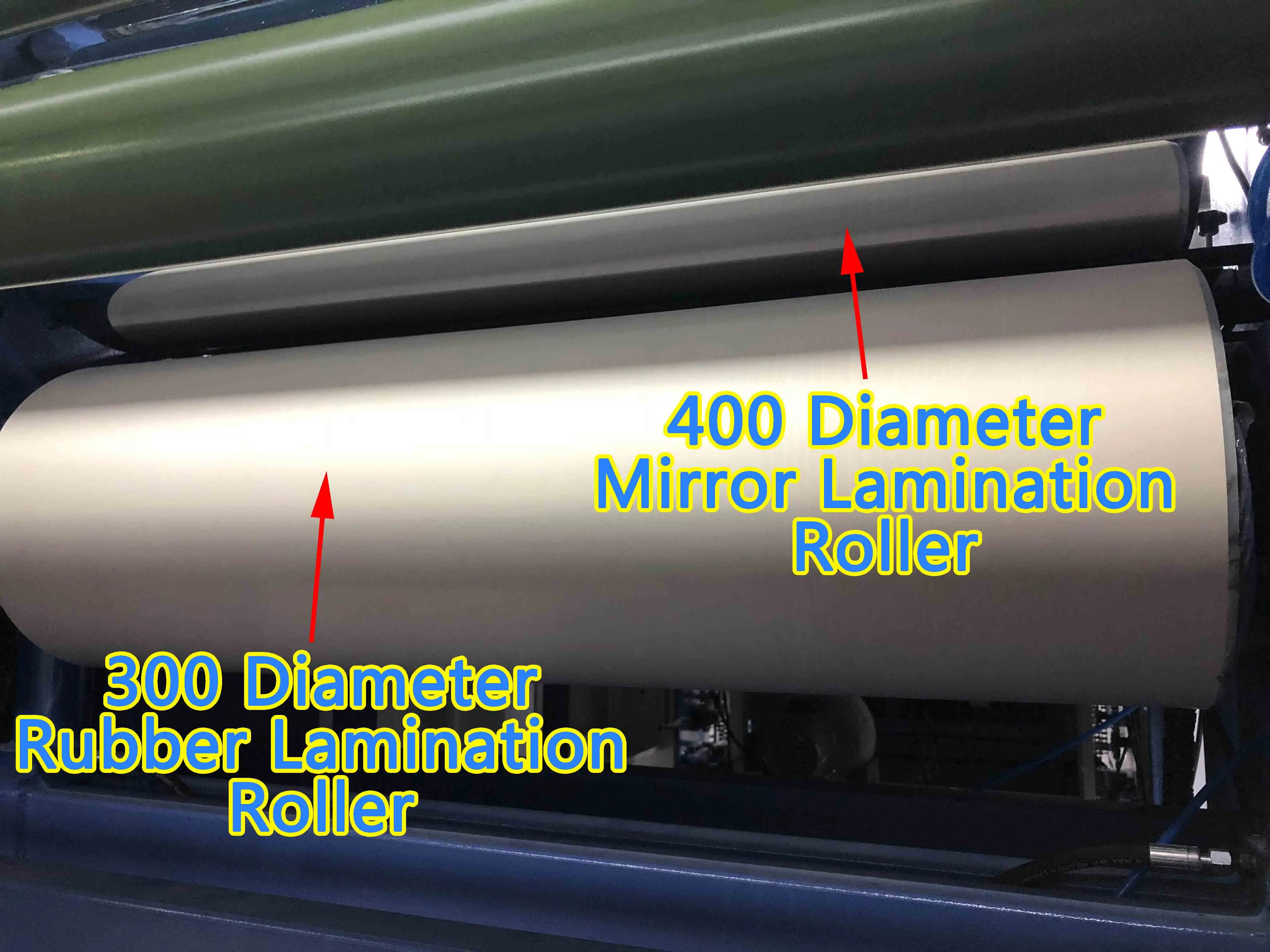

400mm diameter mirror laminating roller, also equipped with electromagnetic heating system, cooperate with 300mm big rubber roller to insure laminating performance.

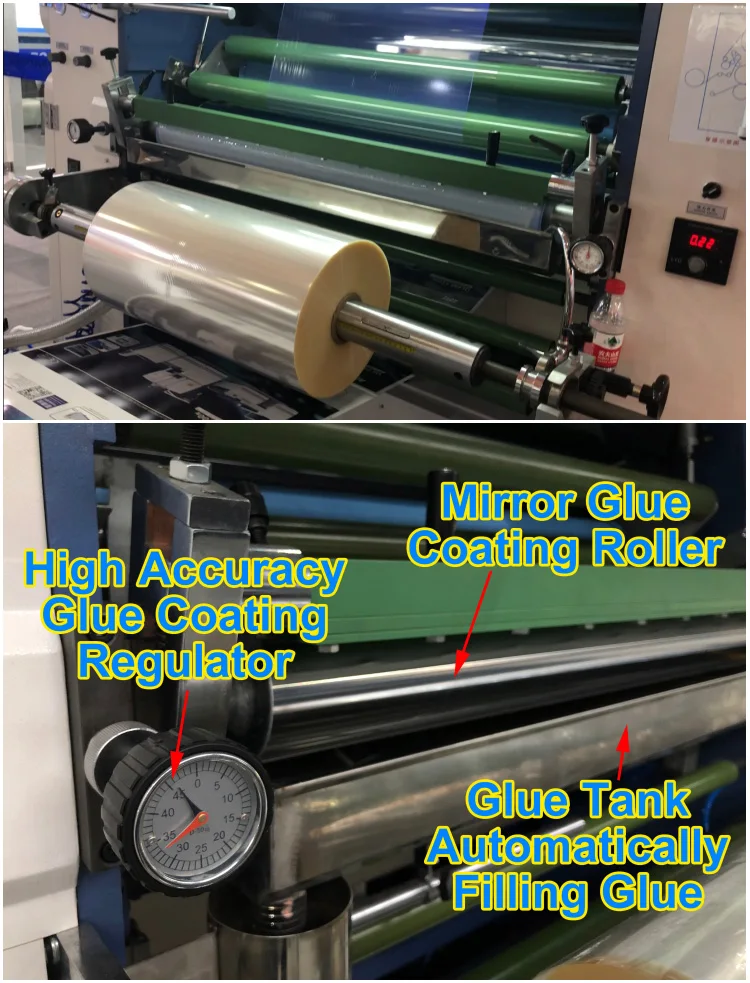

5. Glue Coating Part
Adopt high accuracy glue coating regulator, can control a erasing knife to adjust coating thickness easily and accurately, save much glue consumption. Mirror coating roller ensure the glue is even.

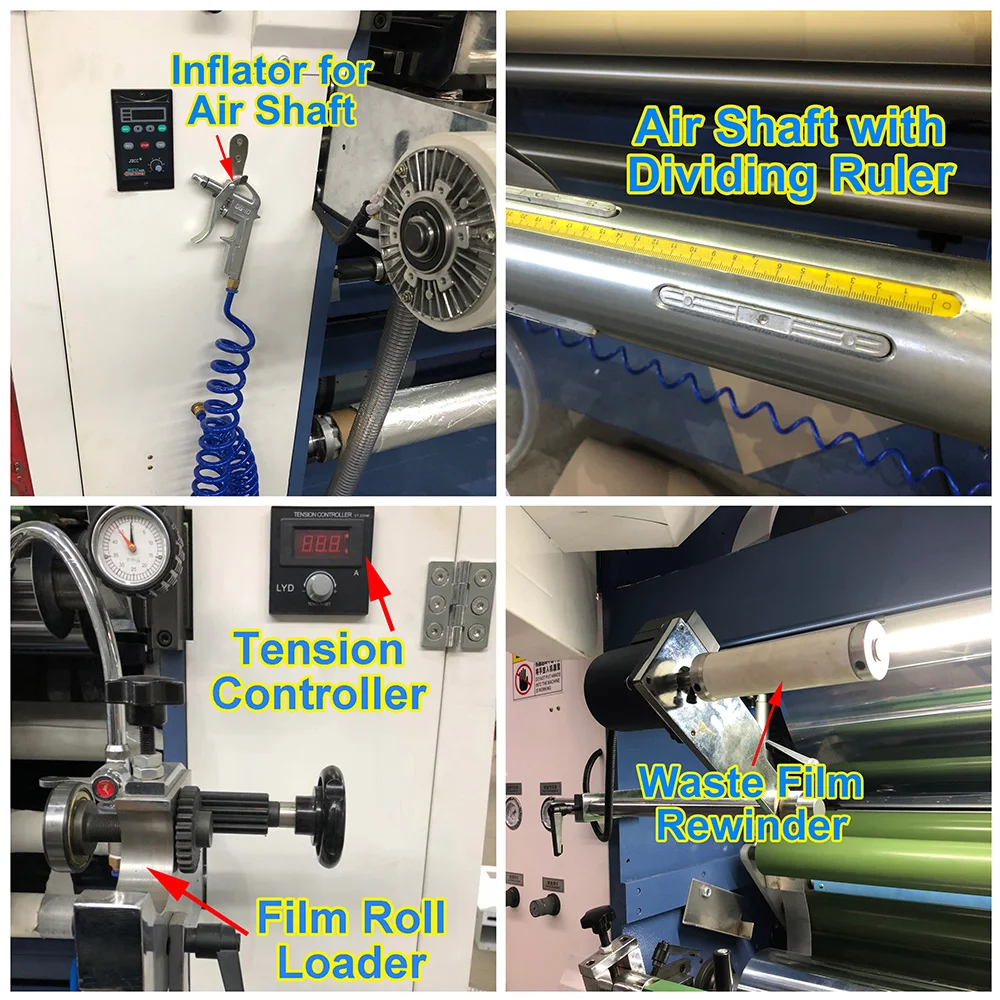

Air shaft with dividing ruler, can adjust the position of film roll accurately, easy to load film. The tension of film is
adjusted accurately by the tension controller.

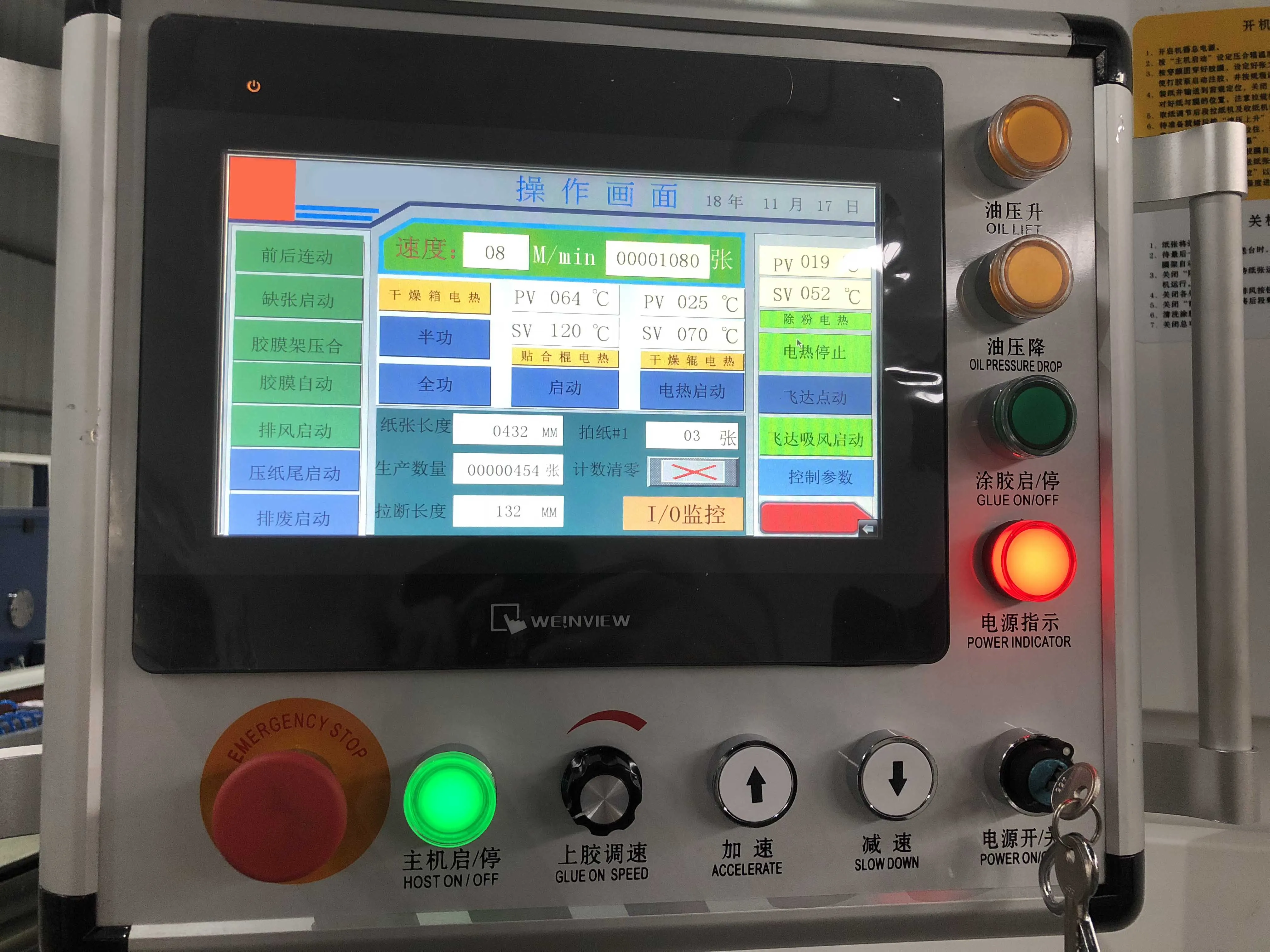

Equipped with 10 inches colorful touch screen and man-machine control panel, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.

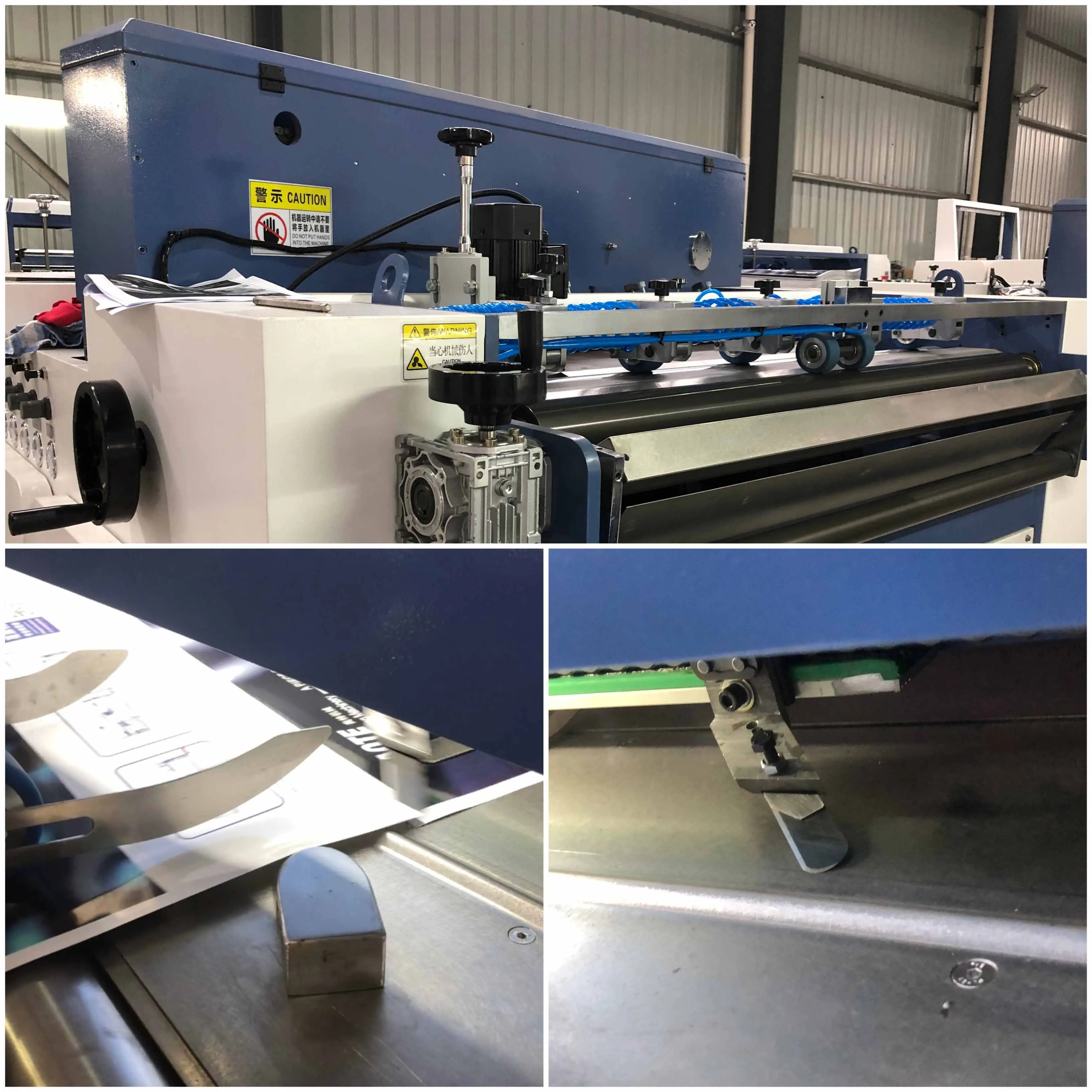

5. Slitting Part
High speed chain knife slitting, designed for PET and thin foil, can slit most material of film perfectly. Easy to adjust by inputting data to the setting panel.
Disc knife, coordinate with pneumatic pull and separating system, can slit BOPP and OPP film perfectly.(If you use PET or thin foil, we have chain knife slitting machine optional)

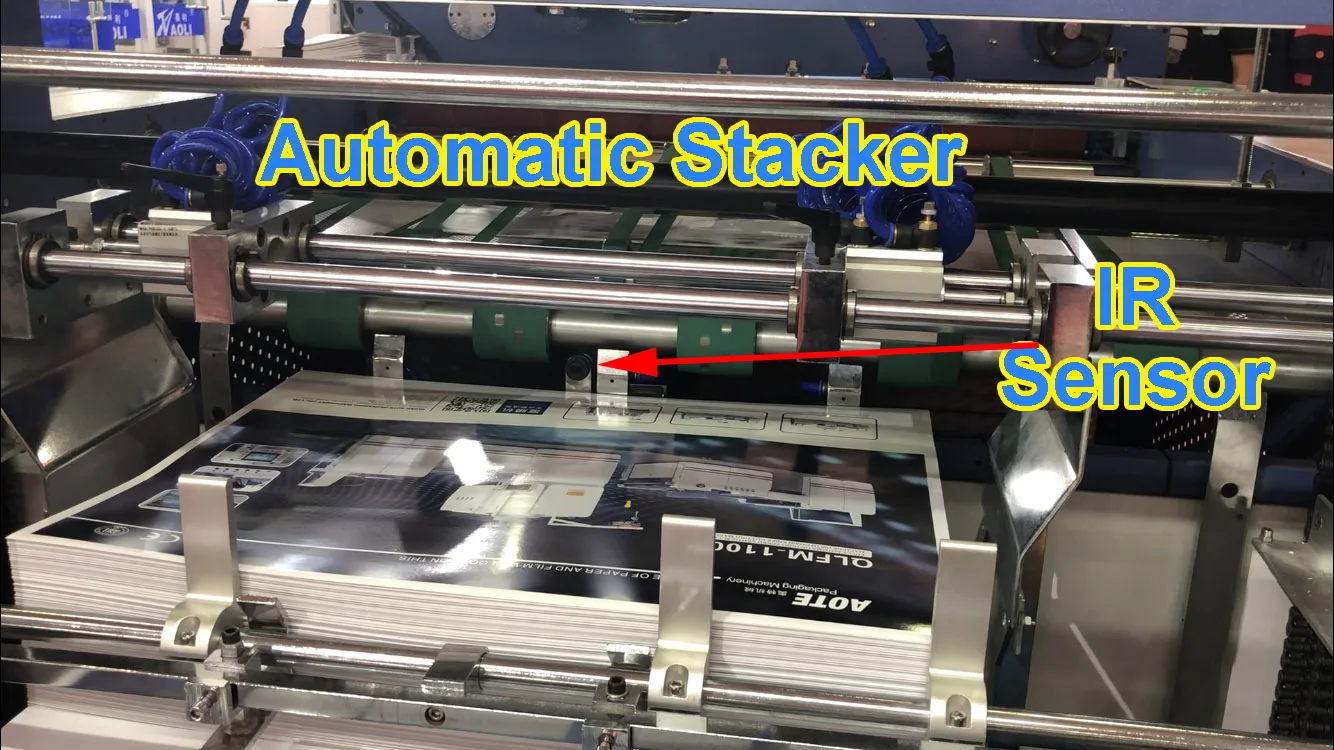

6. Stacker Part
Automatic stacker, stack sheets in 3 directions fast, makes sheets pile aligned, convenient to transport and ready for next process.
Related Products
Part of Configurations
Touch Screen
Chinese Taiwan Weinview
Encoder
Japan Omron
Inverter
China Kewo
AC Contactor
France Schneider
Intermediate Relay
France Schneider
Push Button Switch
China Yijia
Small broken Fuser
China Chint
Programming Controller
Chinese Taiwan Delta
Servo Drive
Chinese Taiwan Delta
Motor 5.5KW
China Dongfang
Electromagnetic Auxiliary Heating System
China Shenzhen
Converters
France Schneider
Digital Control Devices
Chinese Taiwan Delta

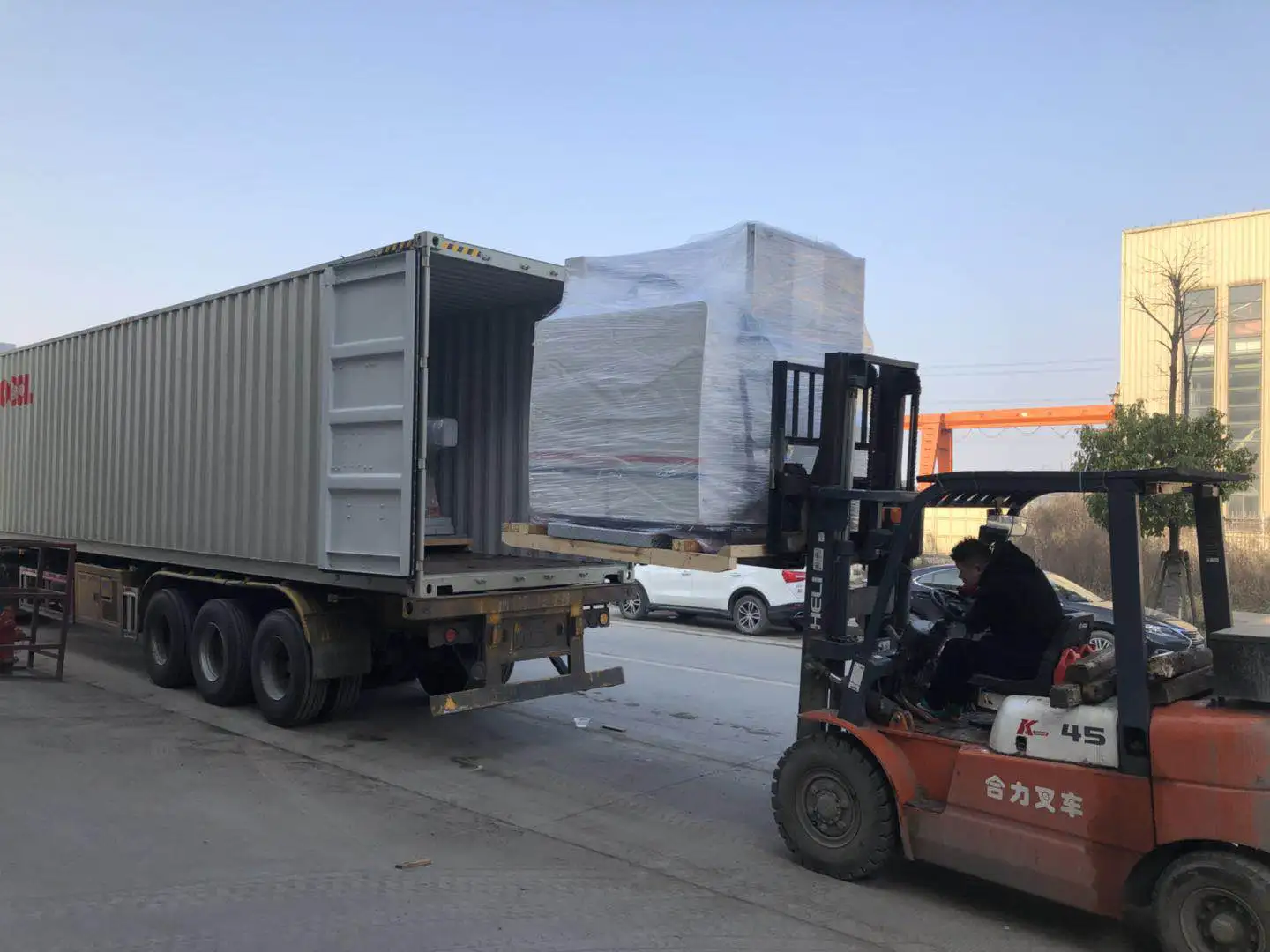

Packing&Shipping
Regularly adopts moisture-proof and shock-proof fumigation-free strong wooden box packaging which is suitable for long-distance road transportation and various types of weather condition.
Company Introduction
Ruian Aote Packaging Machinery Co, Ltd. processes near twenty years of experience in manufacturing lamination machine of post-press equipment. Our strength in researching, designing, manufacturing and servicing process has developed us as one of top professional company in China. Our strong technical force, high-quality products, "Aoli" trademark and perfect after-sales service have won the trust of users at home and abroad.
FAQ

1. What's your delivery time?

Regularly within 30 days upon production schedule after receving payment of deposit

2. After-sale service and warranty?

We provide 1 year warranty period. During the period, we supply the spare parts in free for replacement in case of any quality problem. And you will enjoy life time technical support by our professional after-sales team.

3. Do you have engineer available for installation, training and test to my factory?

Don’t worry, we have installation service. All the machines have been adjusted and tested well in our workshop before delivery. If you require, our engineer will come to your factory for technical support. But you shall pay extra installation cost upon final confirmation.

4. Any certifications?

Yes all the machines have passed ISO9001 and CE certification. And we have patents about chain knife, heating roller and powder cleaning.
